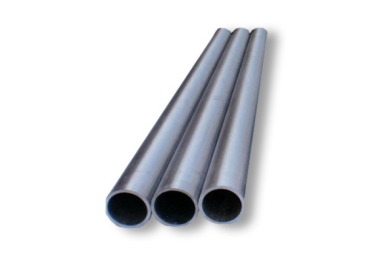

Titanium Grade 9 Pipe Description
Having good strength and toughness, Grade 9 titanium pipe can maintain stable performance under high temperature and high pressure conditions, and is suitable for aerospace. Besides, Grade 9 titanium pipe has incredible corrosion resistance and can resist the erosion of corrosive media such as sea water and salt water, so it is widely used in marine engineering and chemical equipment. For another, Grade 9 titanium alloy has good weldability and is suitable for conventional welding, arc welding, laser welding and other processes, giving it high plasticity and processability during the manufacturing process. Lastly, Grade 9 titanium has a lower density and is lighter than many other metals, giving it an advantage in parts requiring lightweight designs. Grade 9 titanium pipes are commonly used in aerospace, marine engineering, chemical equipment and other fields.
| Product Parameters | |
| Product Name | Titanium Grade 9 Pipe |
| Outer Diameter |
Round Pipe: 4mm-200mm Square Pipe: 10*10mm-100*100mm Rectangular Pipe: 10*20mm-50*100mm |
| Wall Thickness | 0.6mm-6.0mm |
| Length | 1-6 meters, Length can be customized |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. |
| Certificate | ISO, SGS, BV |
| Production Technology | Hot Rolling, Cold Rolling |
| Chemical Composition & Mechanical Properties | |
| ASTM/ASME | GB | JIS | N, max | C, max | H, max | Fe, max | O, max | Others | Strength Of Extension (MPa, min) | Ductility (%, min) |
|---|---|---|---|---|---|---|---|---|---|---|
| Gr.9 | TC2 | Class61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | Al: 2.5-3.5 / V: 2.0-3.0 | 620 | 15 |
