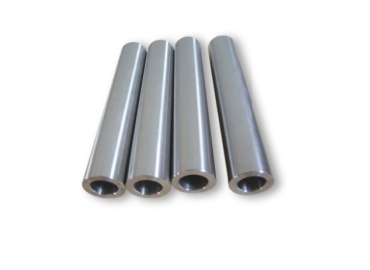

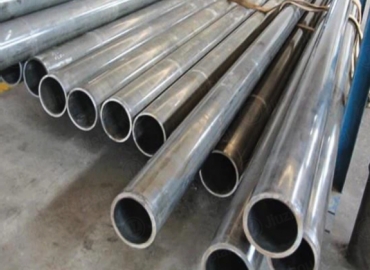

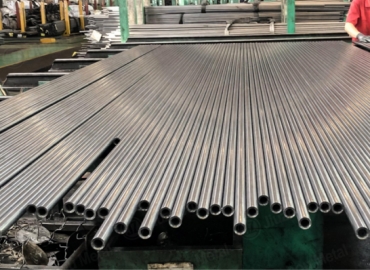

Product Name:Incoloy 825 Pipe

Incoloy 825 Pipe Description
Incoloy 825 pipe is made of a nickel-based alloy that exhibits good corrosion resistance in a variety of environments. The alloy contains 40% nickel, 22% chromium, 2.9% molybdenum and 28% iron, with small amounts of copper and titanium. The combination of these elements gives Incoloy 825 pipe excellent resistance to oxidation, acid, alkali and high temperatures. And, Incoloy 825 alloy also has good welding and processing properties. It can be connected through various welding processes without leaving obvious deformation or intergranular corrosion problems during the welding process. Incoloy 825 pipes have a high melting point and can maintain excellent mechanical properties and oxidation resistance at high temperatures. Lastly, Incoloy 825 pipe is easy to perform hot and cold processing, and can be processed into parts of various shapes.

Product Parameters
Product Name Incoloy 825 Pipe
Outer Diameter Round Pipe: 4mm-200mm
Square Pipe: 10*10mm-100*100mm
Rectangular Pipe: 10*20mm-50*100mm
Wall Thickness 0.6mm-6.0mm
Length 1-6 meters, Length can be customized
Standard ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate ISO, SGS, BV
Production Technology Hot Rolling, Cold Rolling
Chemical Composition
C Al Si S Ti Cr Mn Fe Ni Cu Mo
0.05 max 0.2 max 0.5 max 0.03 max 0.6 - 1.2 19.5 - 23.5 1.0 max 22.0 min 38.0 - 46.0 1.5 - 3.0 2.5 - 3.5
Mechanical Properties
Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation% in 2 inches
85 35 30
Physical Performance
Property Units Temperature in°C
Density 8.14 g/cm³ Room
Specific Heat 0.105 Kcal/kg.C Room
Melting Range 1370-1400°C -
Modulus of Elasticity 196 KN/mm² 20°
Electrical Resistivity 113 µΩ.cm 25°
Coefficient of Expansion 14.1 µm/m °C 25 - 100°
Thermal Conductivity 11.1 w/m-° K 25°
