Keyword: Alloy Pipe

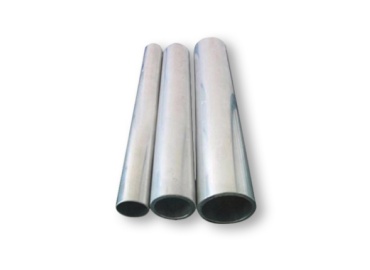

Product Name:Hastelloy B-2 Pipe

Hastelloy B-2 Pipe Description
Hastelloy B2 pipe has a chemical composition mainly including nickel, chromium, molybdenum and a small amount of iron, tungsten and other elements. The combination of these elements leads to excellent corrosion resistance and high-temperature strength. Among them, the nickel element provides good corrosion resistance, the chromium element enhances the material's corrosion resistance in an oxidizing environment, and the molybdenum element improves the material's corrosion resistance in a reducing environment. Moreover, the addition of elements such as iron and tungsten further add to the strength and hardness of the material. Hastelloy B2 pipes have good processing properties and can be used for hot processing and cold processing. Hot processing includes casting, hot rolling, heat treatment and other processes, while cold processing includes cold rolling, cold drawing, stamping and other processes.

Product Parameters
Product Name Hastelloy B-2 Pipe
Outer Diameter Round Pipe: 4mm-200mm
Square Pipe: 10*10mm-100*100mm
Rectangular Pipe: 10*20mm-50*100mm
Wall Thickness 0.6mm-6.0mm
Length 1-6 meters, Length can be customized
Standard ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate ISO, SGS, BV
Production Technology Hot Rolling, Cold Rolling
Chemical Composition
C Si P S Cr Mn Fe Co Ni Mo
0.02 max 0.1 max 0.04 max 0.03 max 1.0 max 1.0 max 2.0 max 1.0 max Remainder 26.0 - 30.0
Mechanical Properties
Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation% in 2 inches
110 51 40
Physical Performance
Property Units Temperature in°C
Density 9.22 g/cm³ 22°C
Specific Heat 0.089 Kcal/kg.C Room
Melting Range 1370-1418°C -
Modulus of Elasticity 217 KN/mm² Room
Electrical Resistivity 137 µΩ.cm
Coefficient of Expansion 10.3 µm/m °C 20-93°
Thermal Conductivity 11.1 w/m-° K
